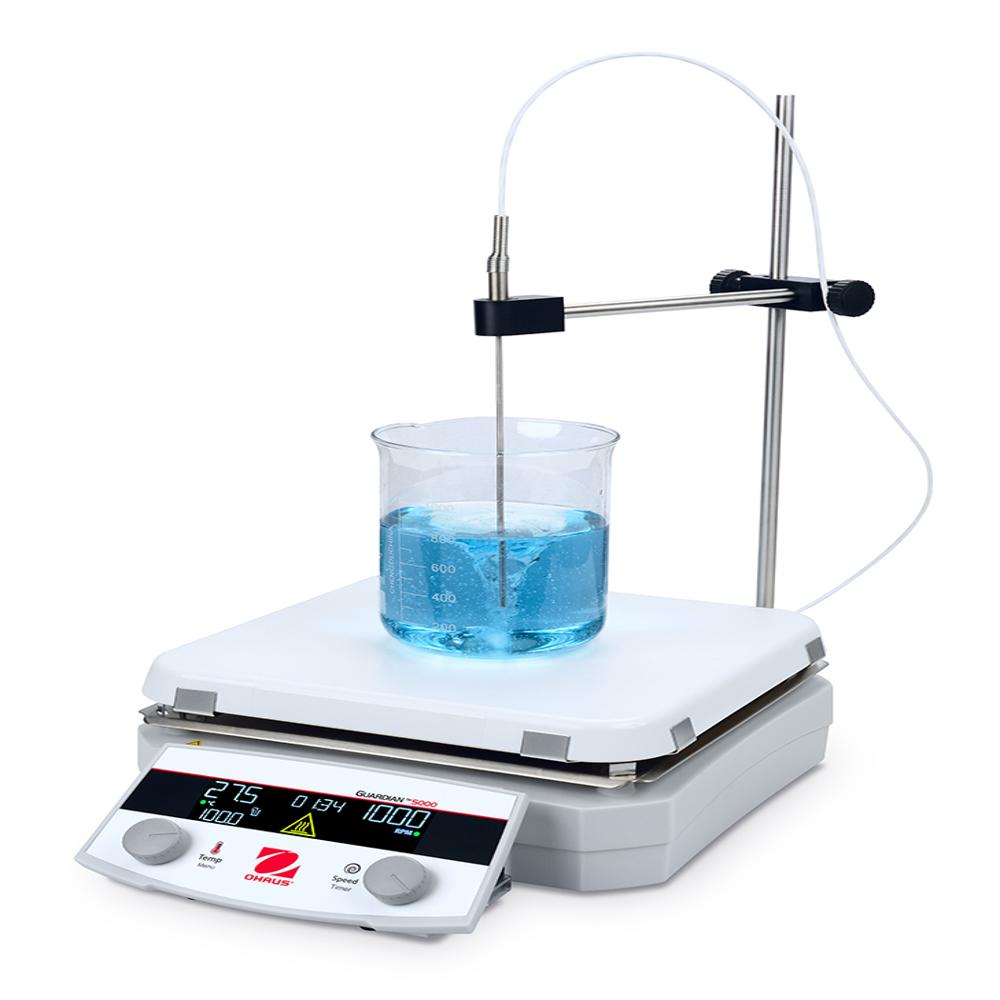

e-G51ST07C Guardian 5000 Hotplates Stirrers

Product Details:

Click to View more

Request to Call Back Send Inquiry

Product Description

Product Description

Product details

Function	Stirring
Capacity	15 L
Plate Construction	Ceramic
Item Number:	30500541

Applications

Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display

Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

Operation

Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar

Communication

N/A

Construction

Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

Design Features

Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints

Specification

Function	Stirring
Capacity	15 L
Plate Construction	Ceramic
Plate Size	7 in x 7 in (178 mm x 178 mm)
Speed Range	60 rpm – 1,600 rpm
Calibration	Temperature Calibration 3 Plate/3 Probe
Control	Digital
Dimensions	12.2 in x 4.8 in x 8.8 in (309 mm x 122 mm x 223 mm) (LxHxW)
Display	Custom Back-lit LCD
In-Use Cover	Available as an Accessory
Net Weight	5.7 lb (2.6 kg)
Power	230V, 0.5A, 50/60Hz
Power Consumption	104 W
Safety Certification	TUV
Speed Range	60 to 1600 rpm
Speed Stability	+/-2%
Temperature Probe	Available as an Accessory
Temp. Stability	+/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C
Working Environment	41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
